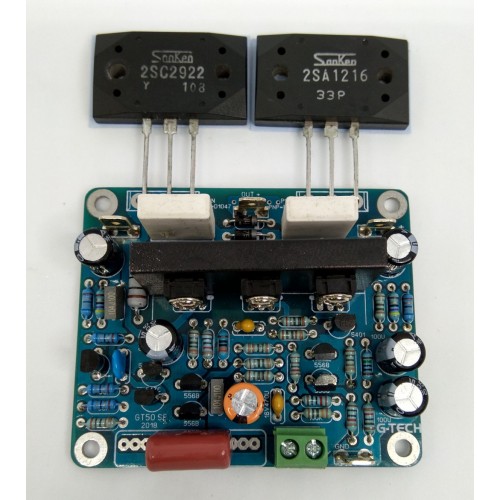

2TR 100 WATT MONO POWER AMP KIT - GTECH

2TR 100 WATT MONO POWER AMP KIT - GTECH
2TR 100 WATT MONO POWER AMP KIT - GTECH
Brand: GTECH
Product Code: PRODUCT 1202
Availability: In Stock
Product Views : 10411
₹800.00
₹800.00
Ex Tax: ₹800.00

Specification:
  • Supply voltage:  +-15V to + - 45V
  • Output Power: 100W8R(+-42V)
  • Voltage gain GAIN: 34times
  • Input Sensitivity: 1.2V100W RMS 8 Europe
  • SNR:  More than 98DB
  • Distortion:<0.009 THD 1K HZ 10W
  • Output stage quiescent current per channel IQ Approximately 30MA
  • PCB Dimension : 76.5mm*73.4mm
  • Installation: High-power tube to be insulated and radiators,installing insulation film


Specifications
Distortion <0.009 THD 1K HZ 10W
Input Sensitivity 1.2V100W RMS 8 Europe
Installation High Power tube to be insulated and radiators, installing insulation film
Output Power 100W8R(+-42V)
Output Stage Approximately 30MA
PCB Dimension 76.5mm*73.4mm
SNR More than 98DB
Supply Voltage +-15V to +-45V
Voltage Gain 34 times
