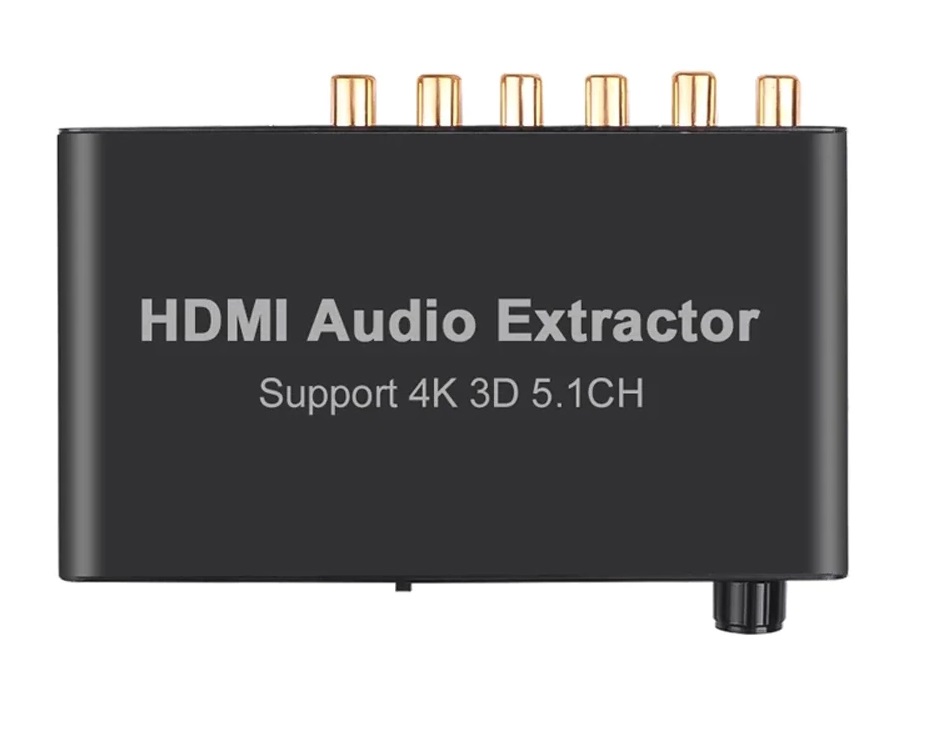

5.1CH HDMI AUDIO EXTRACTOR (Without ARC)

A 5.1CH HDMI Audio Extractor (without ARC) is a device designed to extract multi-channel audio (5.1 surround sound) from an HDMI signal and output it through separate audio connections, typically without supporting Audio Return Channel (ARC). This type of extractor is used in setups where you want to route audio to an audio receiver or amplifier while sending the video signal to a display.

Description

The HDMI audio extractor captures the audio signal from an HDMI input and provides multi-channel audio outputs, such as 5.1 surround sound. It does not include ARC support, which means it does not have the capability to return audio from a TV back to an audio system over the same HDMI cable.

Features

Build-in high performance RTOS operating system and audio decoder chip; support DTS/AC-3.
Super fast start time about 3 seconds.
Input: HDMI

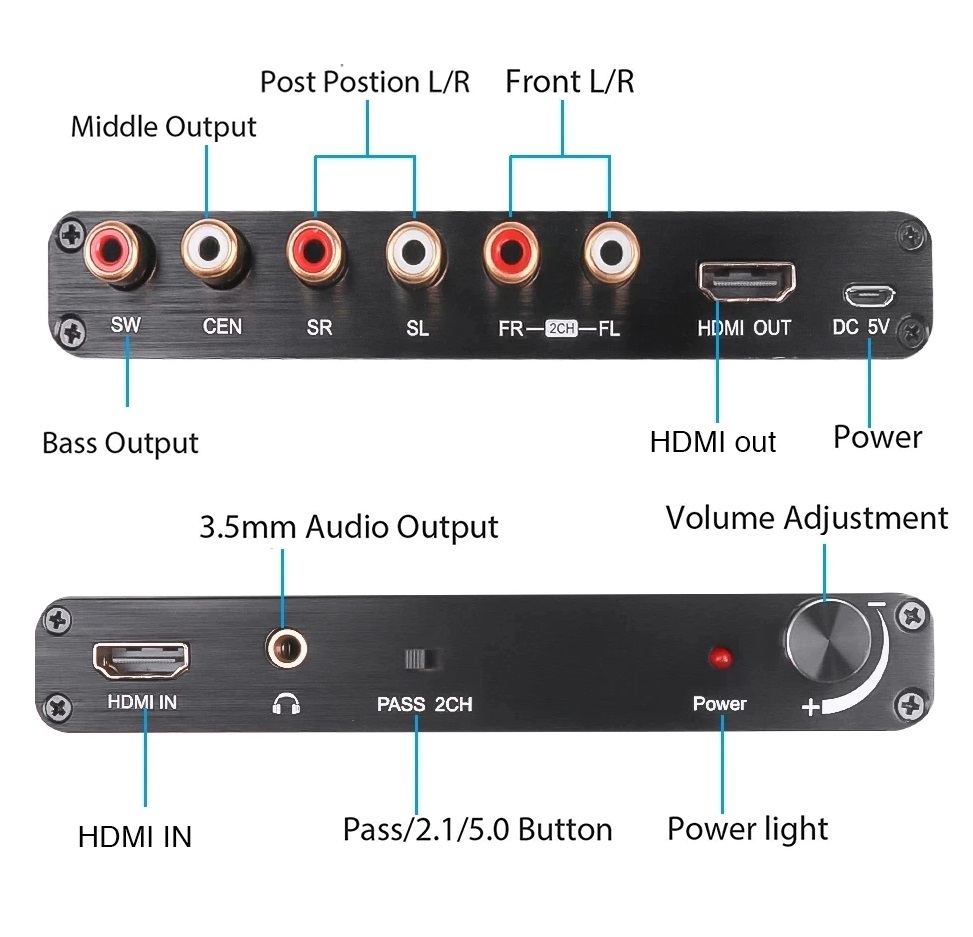

Output: HDMI - SW,CEN,SR,SL,FR,FL; 3.5mm Headphone Port
HDMI Input Resolution: Up to 3840x2160@30Hz;4096x2160@30Hz.
HDMI to achieve the synchronization of audio signal decode. There are PASS/2.0CH/5.1CH three kinds of audio mode options.
Auto decode AC-3/DTS (LPCM/PCM/RAW) input signal without any action.

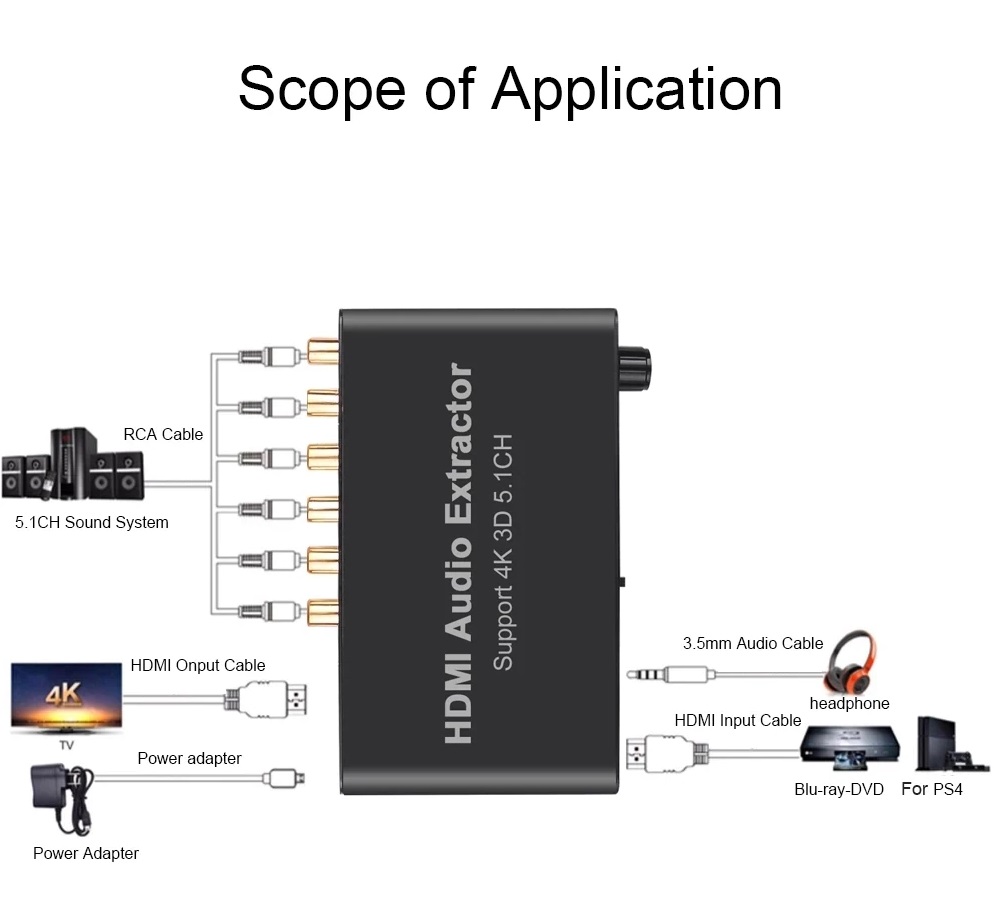

High compatibility: Support network player, HDTV, Blu-ray DVD, DVD, for PS3,for Xbox 360, DM500S, DM800HD, etc.
Small Size and Metal case, Anti-interference.
Adopt 6ch RCA/3.5mm Headphone port output, convenient and efficient in use.
Supports 6CH volume synchronous adjustment.
