Product Code: PRODUCT 0503
Availability: Out Of Stock
Product Views : 24529
₹3,500.00
₹3,500.00
Ex Tax: ₹3,500.00

SPECIFICATIONS: (HDCN0033M1)


Brand:AIS


HDMI resolution     up to 4K/30Hz, 1080P/1080I/720P/576P/480P/60Hz


Support video color format  24bit/deep color 30bit,36bit


HDMI Audio FormatDTS-HD/Dolby-TrueHD/LPCM/DTS/Dolby-AC3/DSD


Digital audio convert formatLPCM, up to 71CH


HDMI Max bandwidth 300MHz


HDMI Max baud rate  9 Gbps


Input/Output TMDS signal  05~15Volts p-p(TTL)


Input/Output DDC signal   5Volts p-p (TTL)


DAC sample frequency range 32～192 KHz


DAC Bit rate range16～24 Bit


RCA analog output level  2V RMS


SNR (1KHz@ 0dB)≥90dB


THD+N (1KHz@ 0dB) ≤001%


Frequency response20Hz~20KHz


HDMI input cable distance≤15m AWG26 HDMI standard cable


HDMI output cable distance≤15m（1080P）/8m(4K) AWG26 HDMI standard cable


Max working current   500mA


Power adapter format Input      AC 100V～240V 50HZ/60Hz, DC5V/1A


Operating Temperature range   -10 to +55℃


Storage Temperature range -20 to +60℃


Operating Humidity range  10 to 90%RH (No Condensation)


Storage Humidity range 5 to 95%RH (No Condensation)

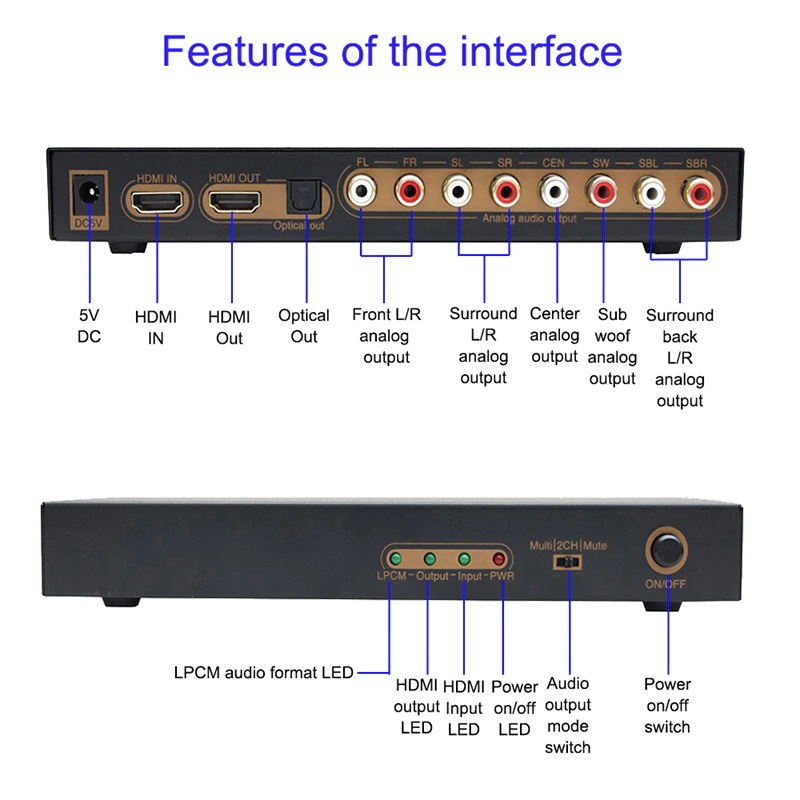

  • 4K HDMI Input and Output:

    • High Resolution Support: Supports 4K UHD (Ultra High Definition) video signals with resolutions up to 3840x2160 pixels at various refresh rates (e.g., 30Hz, 60Hz).
    • HDMI 2.0/2.1 Compliance: Often compliant with HDMI 2.0 or HDMI 2.1 standards, which ensure compatibility with the latest HDMI sources and displays.

  • Audio Decoding:

    • 7.1 LPCM Decoding: Decodes 7.1 channel Linear PCM audio, which provides high-fidelity, uncompressed audio. This format includes channels for front left, front center, front right, surround left, surround right, rear left, and rear right, as well as a subwoofer channel.
    • Multi-Channel Audio Support: Capable of handling multi-channel audio streams, providing an immersive audio experience for movies, games, and music.

  • Advanced Audio Processing:

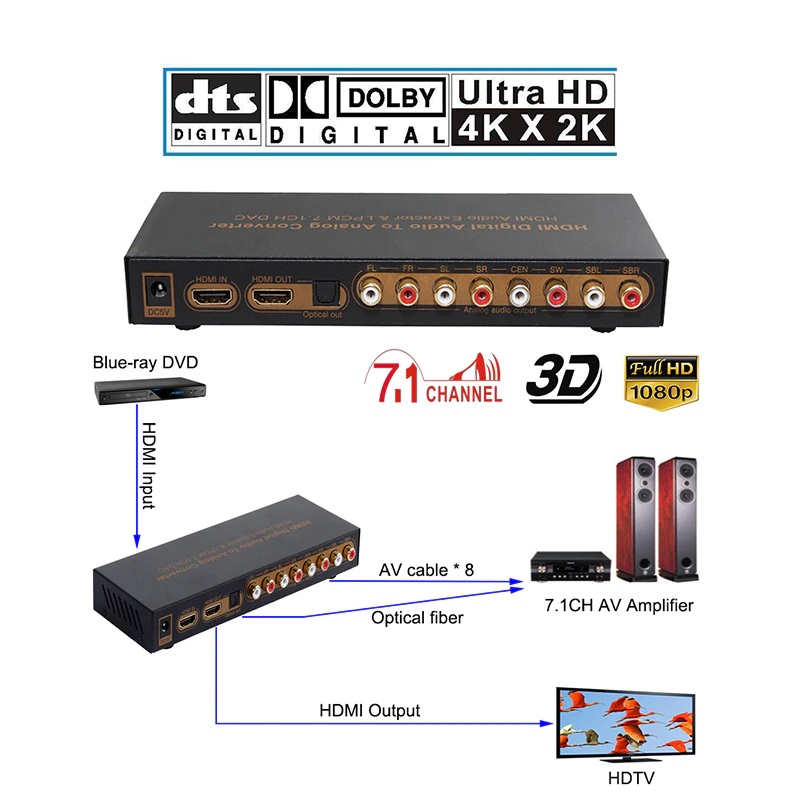

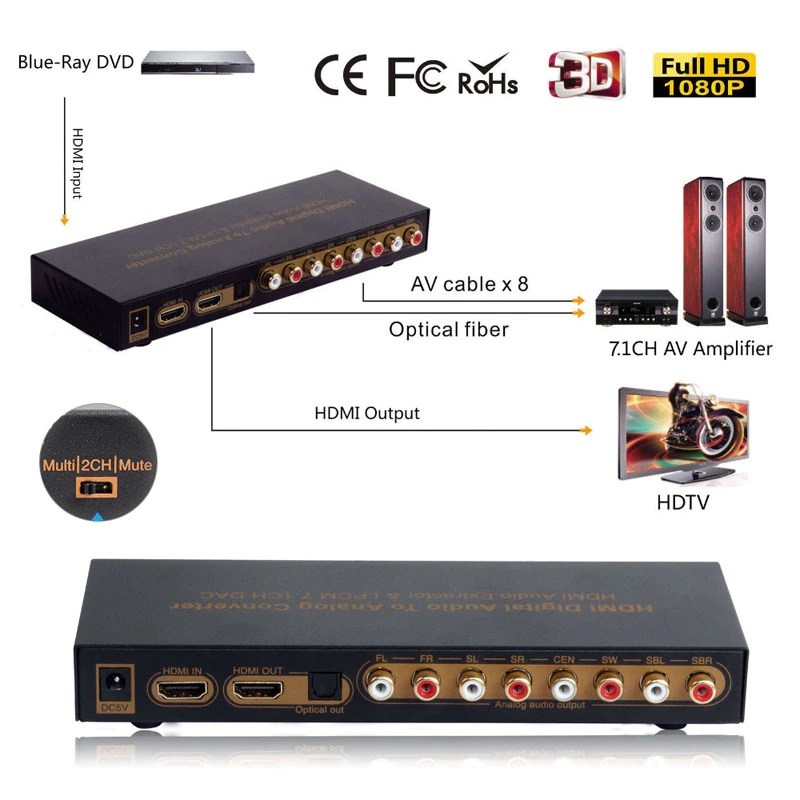

    • Audio Extraction: Can extract audio from HDMI signals, allowing you to route audio to external audio systems or amplifiers while sending video to a display.
    • Audio Pass-Through: Passes through audio signals without alteration for systems that handle audio processing separately.

  • Video Processing and Scaling:

    • Upscaling: Some models include upscaling features to enhance lower resolution video signals to 4K resolution.
    • Video Quality Enhancement: Features such as noise reduction, color enhancement, and sharpening may be included to improve video quality.

  • Connectivity:

    • Multiple HDMI Inputs/Outputs: Typically provides multiple HDMI inputs and outputs to connect various devices such as Blu-ray players, game consoles, and AV receivers.
    • Additional Audio/Video Outputs: May include other output options such as optical audio, coaxial audio, or analog audio for flexible integration with different audio systems.

  • Control and Configuration:

    • Remote Control: Often comes with a remote control for easy configuration and adjustment of settings.
    • On-Screen Display (OSD): Features an OSD menu for setting up and managing various functions and configurations.
    • Firmware Updates: Some models support firmware updates to enhance functionality and maintain compatibility with new formats.

  • Build Quality and Design:

    • Durable Construction: Designed for reliability with robust build quality to handle frequent use.
    • Cooling and Ventilation: Includes adequate cooling solutions to prevent overheating during operation.
