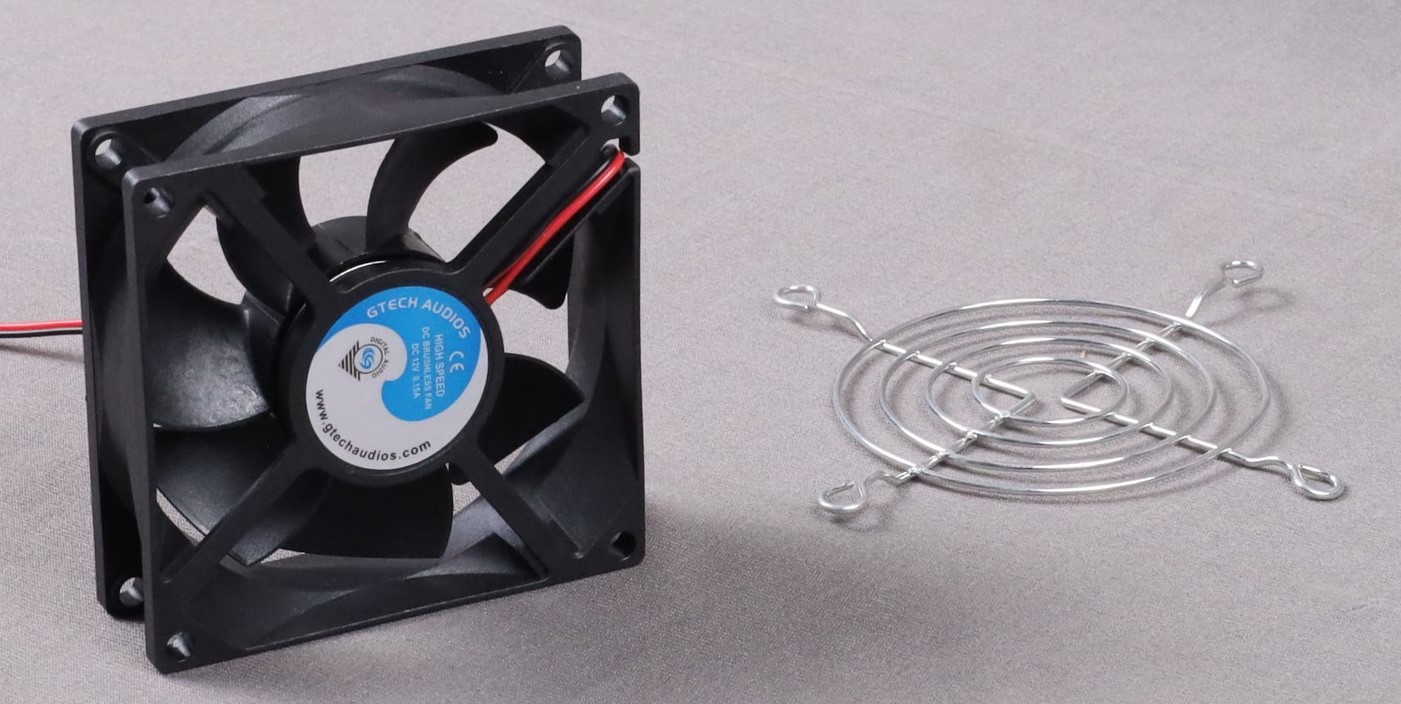

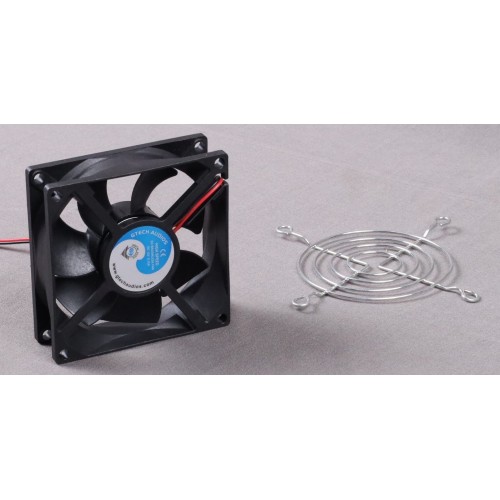

3" FAN WITH GRILL

They are typically found in ATX Computer cases, servers, and other enclosed equipment but they can also be used in a variety of other projects requiring moderate airflow. The fan spins at ~2600 RPM and can move approximately 30CFM. It is fairly quiet – just 30.7dBA. There are two connectors commonly found in PCs on the end – a 4 pin Molex connector designed to fit inline with older style hard drive connectors and a smaller 3 pin Molex KK 2.54mm that is compatible with our 3 pin Molex Header. To use the fan, simply connect Red to 12V, Black to Ground. The White wire is a Tach signal – it can be used to monitor the fan rotation or left disconnected if it isn’t needed.

Features:

Input Voltage: 12 VDC

Current: 0.25A

Noise: 30.7 dBA

Wire Gauge: 26AWG

RPM: 2600RPM @ 12VDC

Air Flow: 30.7 CFM

Dimensions: 80 x 80 x 25mm

Wire Length: 40cm

Ball Bearing Mounted
