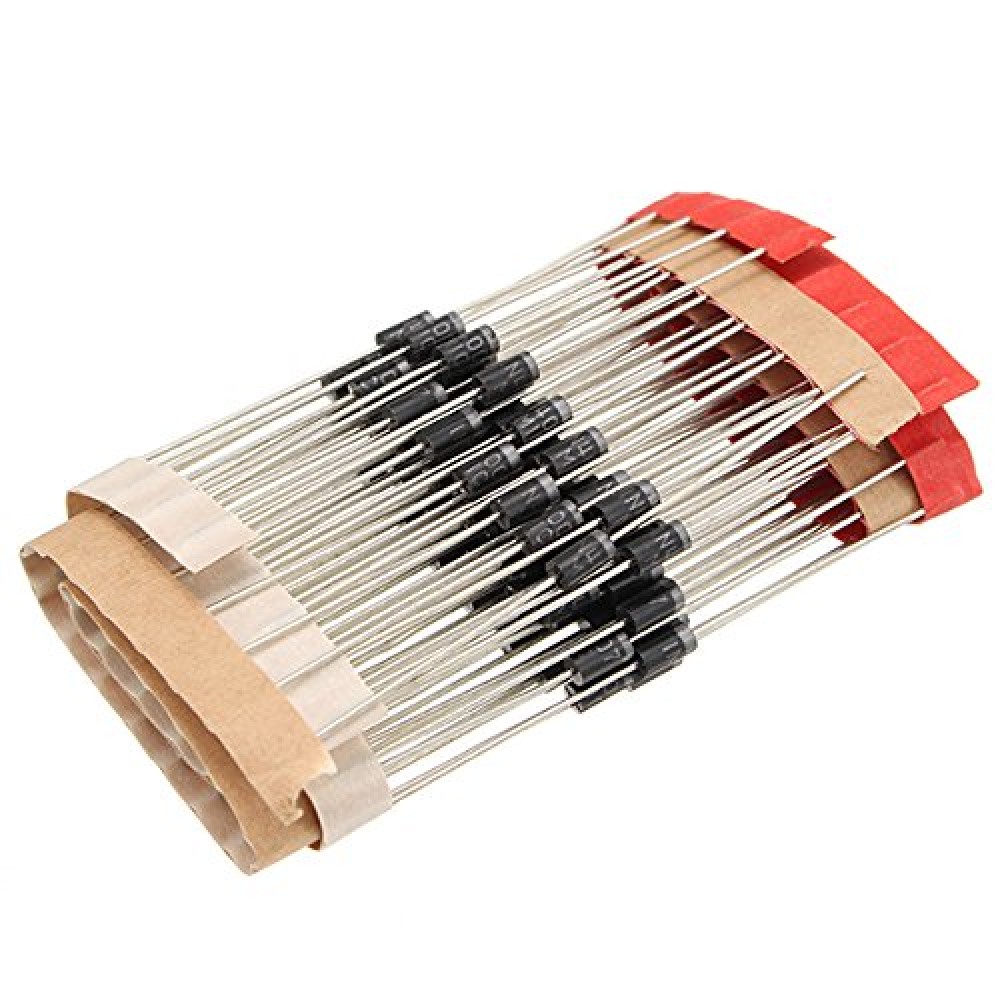

IN4007 DIODE

1N4007 is a rectifier diode, designed specifically for circuits that need to convert alternating current to direct current. It can pass currents of up to 1 A, and have a peak inverse voltage (PIV) rating of 1,000 V.

Note: This product has a minimum quantity restriction (10nos) for order.

1N4007 Characteristics:

• Maximum Recurrent Peak Reverse Voltage 1000V
• Maximum RMS Voltage 700V
• Maximum DC Blocking Voltage 1000V
• Average Forward Current: 1.0A
• Peak Forward Surge Current: 30A
• Maximum Instantaneous Forward Voltage: 1.0V
• Maximum DC Reverse Current At Rated DC Blocking Voltage: 5.0µA @ 25°C
• Typical Junction Capacitance: 15pF
• Typical Reverse Recovery Time: 2.0us
• Mounting Type: Through Hole
• Operating Temperature: -55°C ~ 150°C
