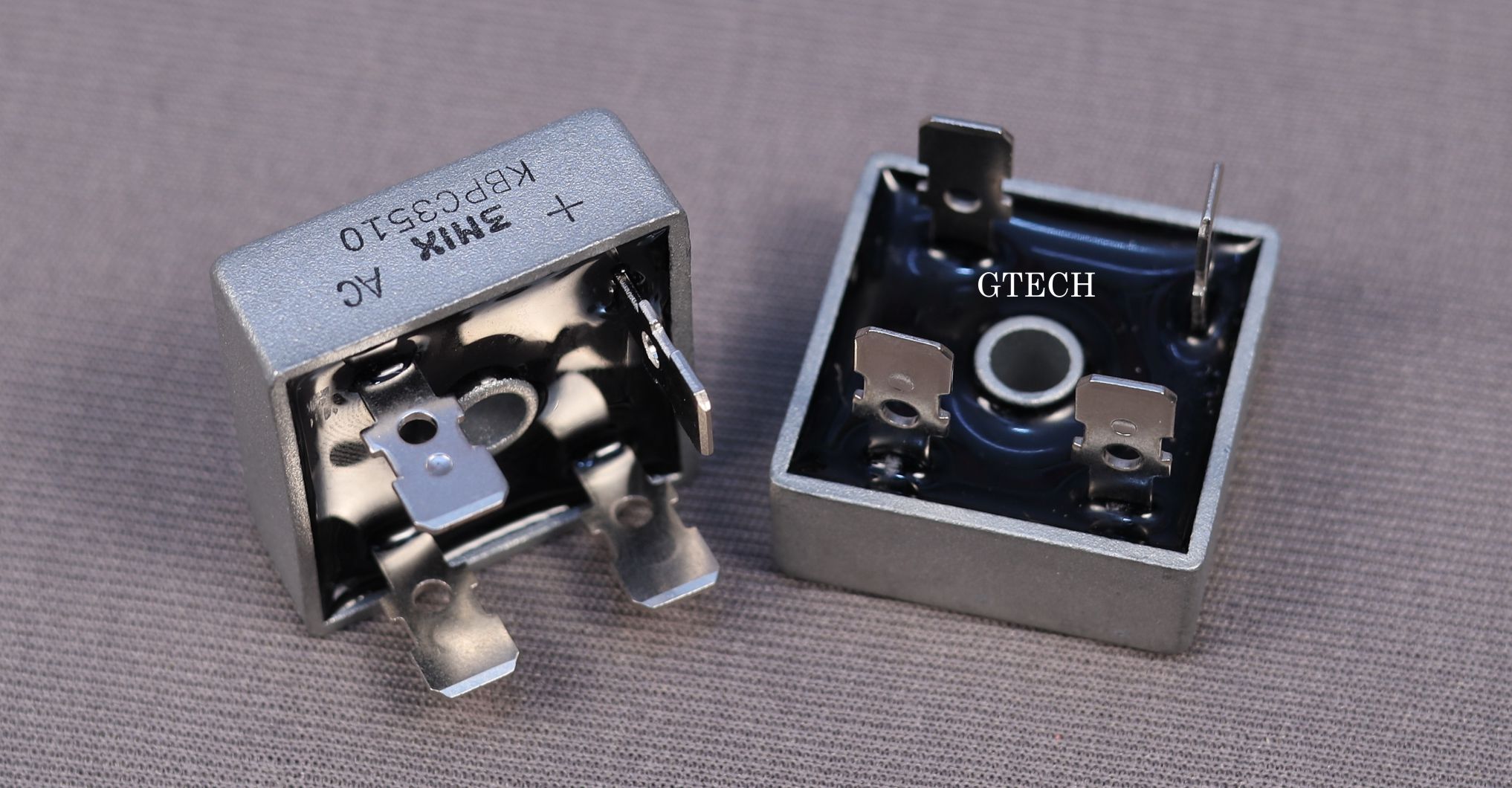

3NIX KBPC 3510 Diode

3NIX KBPC 3510 Diode
3NIX KBPC 3510 Diode
Product Code: PRODUCT 2525
Availability: In Stock
Product Views : 9174
₹130.00
₹130.00
Ex Tax: ₹130.00


Description

The KBPC3510 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 35A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.0V. It has high efficiency and a high surge current capability of 400A. If you are looking for a compact IC for rectification application this can be a good choice.


PINOUT

Pin Number

Pin Name

Pin Description

1

Positive

Positive of Rectified Output

2

AC Input

AC Input

3

Negative

Negative of Rectified Output

4

AC Input

Ac Input




FEATURES

  • Superior thermal design
  • 400 amperes surge capability
  • Mounting: Hole thru for #8 screw
  • 1/4" universal faston terminal
  • Both normal and Pb free product are available:
  • -Normal:80-95% Sn,5-20%Pb
  • Pb free:99 Sn above can meet Rohs environment substance directive request


SPECIFICATIONS

Input Voltage

50-1000V

Maximum RMS Bridge Input Voltage

700V

Maximum DC Blocking Voltage

1000V

Maximum Average Forward Output Current

35A

Maximum Forward Voltage

1.0V

Operating Temperature Range:

-55 to + 150°C

Dimensions

 29mm x 29mm x 22.1mm
