DE525K-01 Kevlar cone Woofer 5.25" 8Ohms 75 Watts

SPECIFICATIONS:

  • Nominal diameter: 5.25 inch
  • Nominal impedance: 8 ohms
  • Power rating: 75W
  • Sensitivity(1w\1m): 85.5dB
  • Frequency range: 71Hz-10KHz
  • Voice coil diameter: Ф25

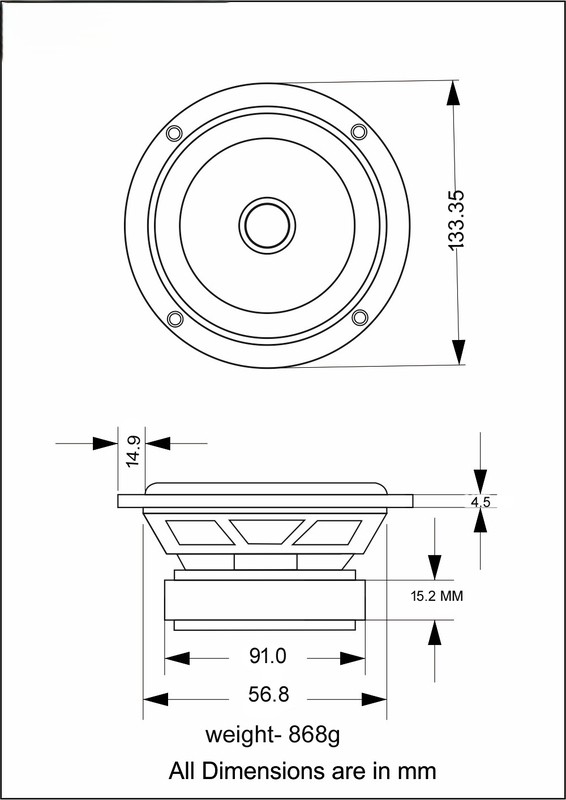

  • Magnet dimension: 090*32*15
  • Fs: 71 Hz
  • Re: 6.5 Ohm
  • Qms: 2.594
  • Qes: 1.09
  • Qts: 0.767
  • Vas: 6.636 Ltr
  • Cms: 0.536 mm/N
  • BI: 5.1




FEATURES:

  • 5.25 inch full frequency horn
  • 90*15MM ferrite magnet double magnetic antimagnetic
  • 25 core high temperature resistant voice coil ASV aluminum skeleton
  • High strength backside iron basin rack
  • Black Rubber Overhang Kevlar cone
  • Paper Black dome Paper Cap
  • 71Hz-10KHz frequency response range
  • 86dB sensitivity
  • 75W rated power
  • Suitable for bookshelf speaker, middle speaker and main speaker
